SPT – Surge Protection Tester

Description

Use the Novaris Surge Protection Tester to monitor and diagnose Novaris products without built in visual indication.

Voltage clamping devices such as Metal Oxide Varistors or Silicon Avalanche Diodes are rated by their breakdown voltage. The SPT-02 applies an increasing voltage until 1mA of current flows through the clamping component.

Voltage switching devices such as Spark Gaps or Gas Discharge Tubes are rated by their firing voltage. The SPT-02 applies an increasing voltage until it registers the short circuit produced by the arc.
These values are presented on the 2 x 16 character display until the next test is performed.

Other test modes supported include insulation resistance to 8GΩ at up to 1000V, voltmeter, diode testing and resistance testing from 0.01Ω to 400kΩ.

Product Codes: SPT-02

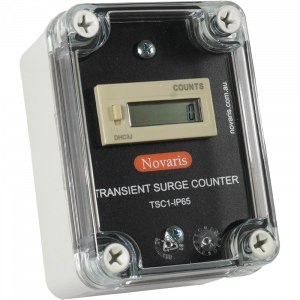

TSC1 – Transient Surge Counter

Description

Transient Surge Counters are used to monitor the level of surge activity at your site. This information can be used to monitor the effectiveness of the installed structural and surge protection equipment. The TSC series comes in a variety of configurations to suit a wide range of monitoring applications

Product Codes: TSC1-IP65 TSC1-DIN, TSC1-CT

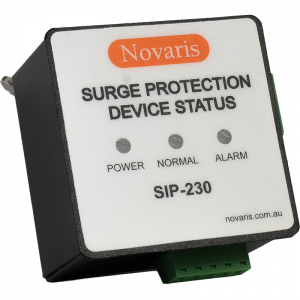

SIP – Surge Indicator Panel

Description

Novaris Surge Indicator Panel allows remote monitoring of any Novaris product featuring external alarms. Visual and audible indicators provide at-a-glance surge protection status. Designed to fit in standard 72mm panel meter cutouts, integration into switchboards is simple.

Product Codes: SIP-110, SIP-230, SIP-24
