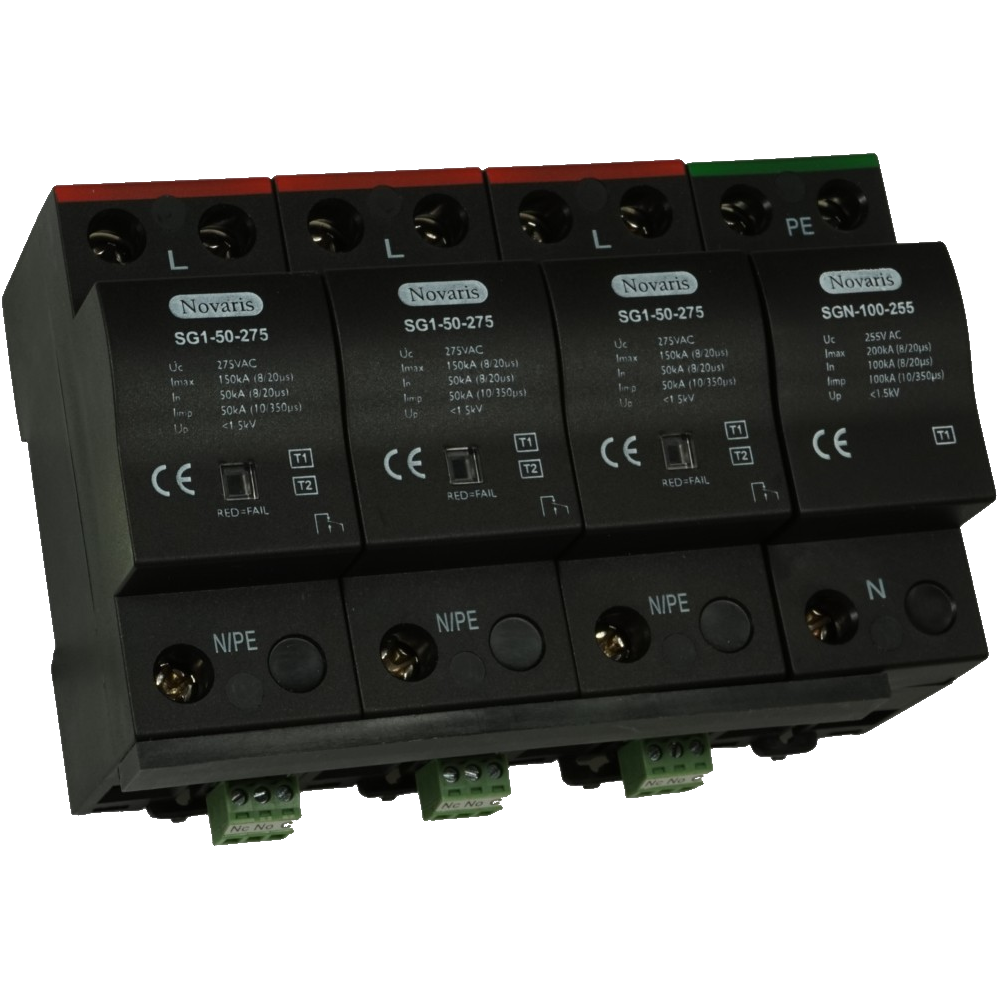

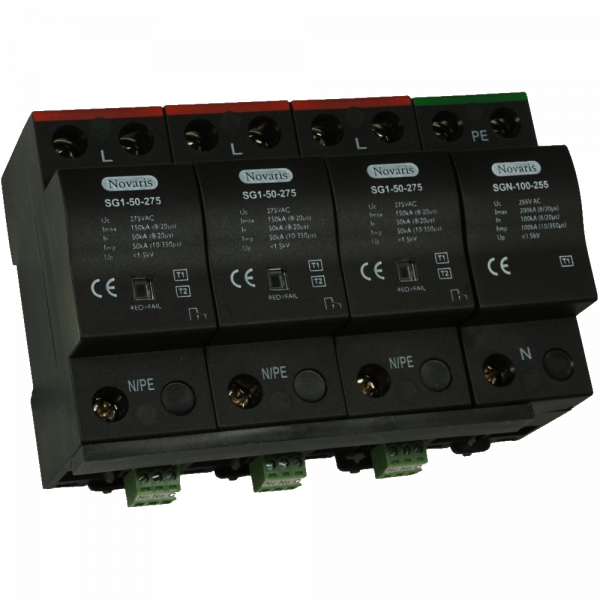

SG – Spark Gap Surge Arresters

Category:

Description

Use Spark Gap Surge Diverters for point of entry protection at main switchboards where direct strike protection is required.

Carbon disk spark gaps are a robust and proven technology designed to handle long duration surges. The low resistance design minimises the energy dissipation within the device.

Two models are available with either 50 kA or 110 kA of impulse current handling per phase for even the most extreme lightning environments.

The Novaris spark gap diverters are a sealed unit and do not exhaust hot ionised gas into the switchboard.

Product Codes: SG1-50-255, SG1-50-255-N, SG3-50-255, SG3-50-255-N, SG1-110-275, SG3-110-275
