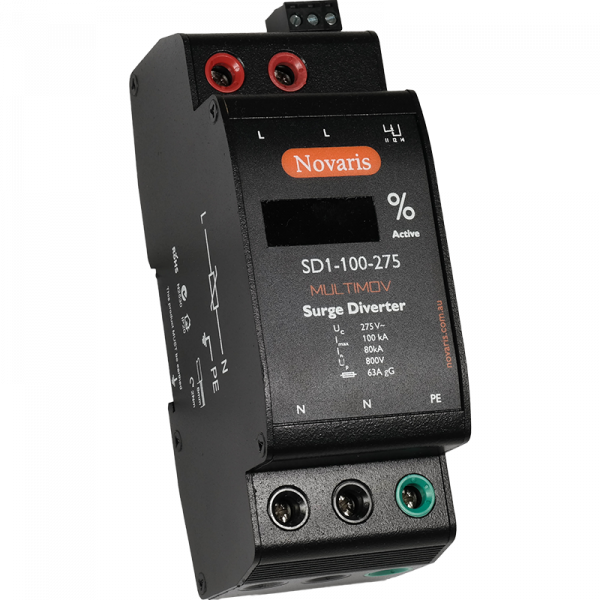

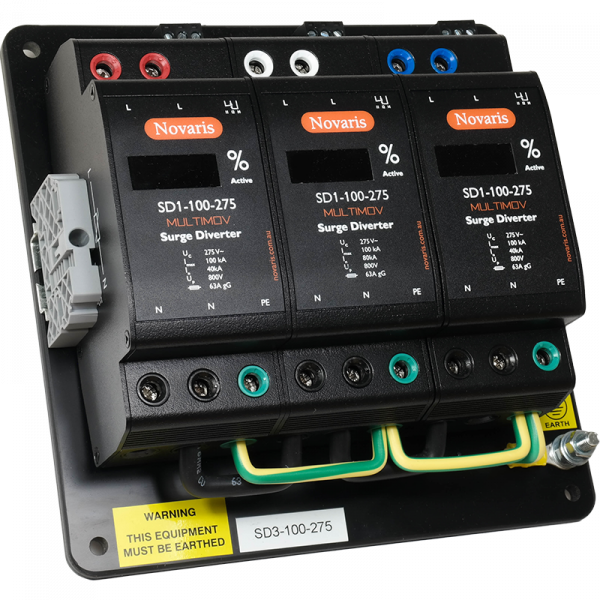

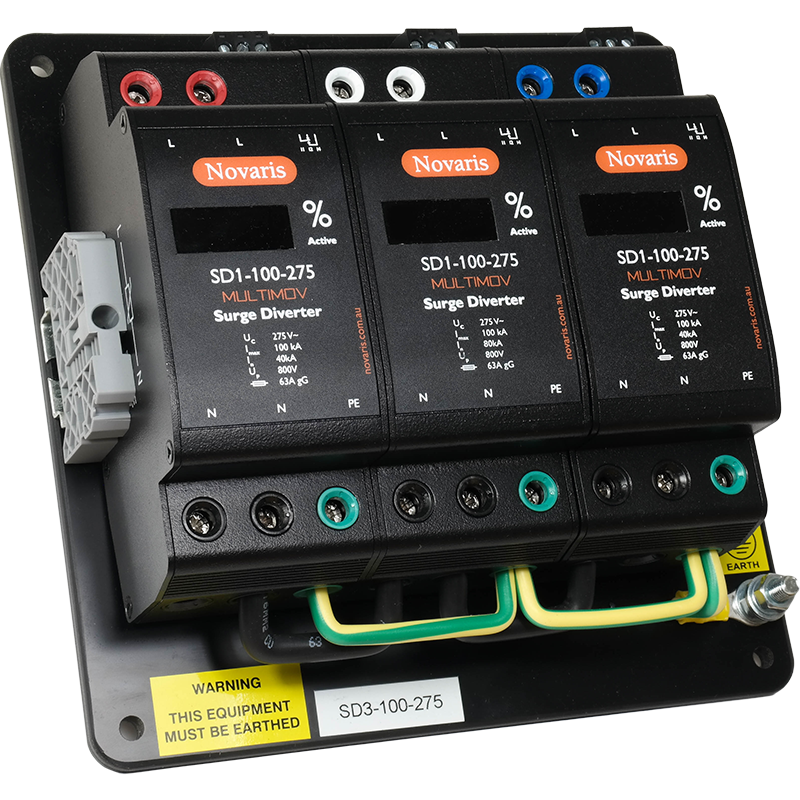

SD – MULTIMOV Surge Diverters



Use SD – MULTIMOV high energy surge diverters for single phase point of entry protection at main switchboards. Models are available for all wiring systems worldwide.

SD MULTIMOV surge diverters feature a parallel redundant arrangement of high energy metal oxide varistors (MOVs), thus promoting long life and exceptional surge handling capacity. In the event of a varistor failure the remaining segments continue to provide protection.

A digital display confirms the device rating by displaying the percentage active of the redundant segments. The display indicates segment status and thermal overload. A failsafe alarm contact allows for remote monitoring.

Product Codes: SD1-100-275, SD1-150-275, SD1-200-275, SD3-100-275, SD3-150-275, SD3-200-275-N, SD1-100-275-N, SD1-150-275-N, SD1-200-275-N, SD3-100-275-N, SD3-150-275-N, SD3-200-275-N
